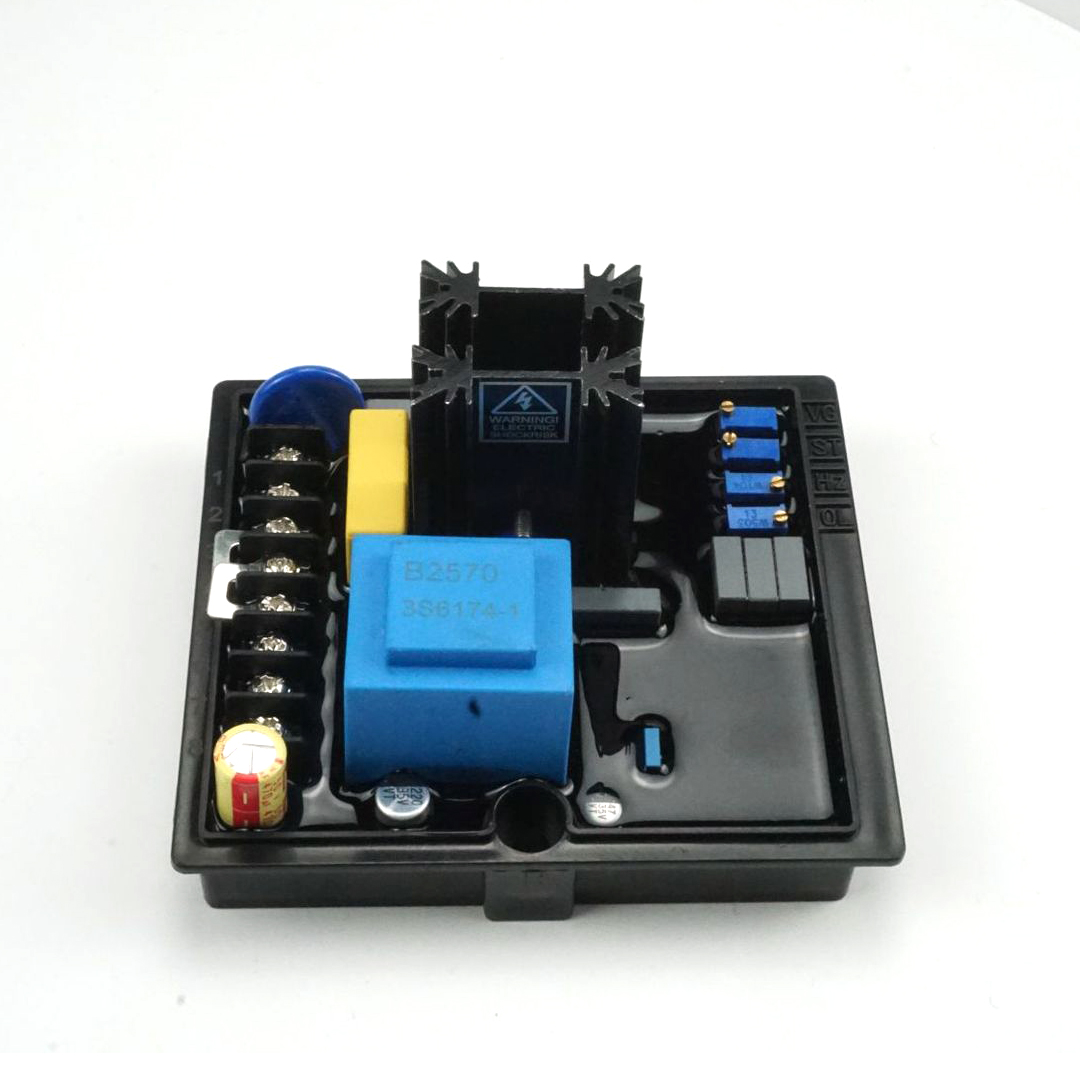

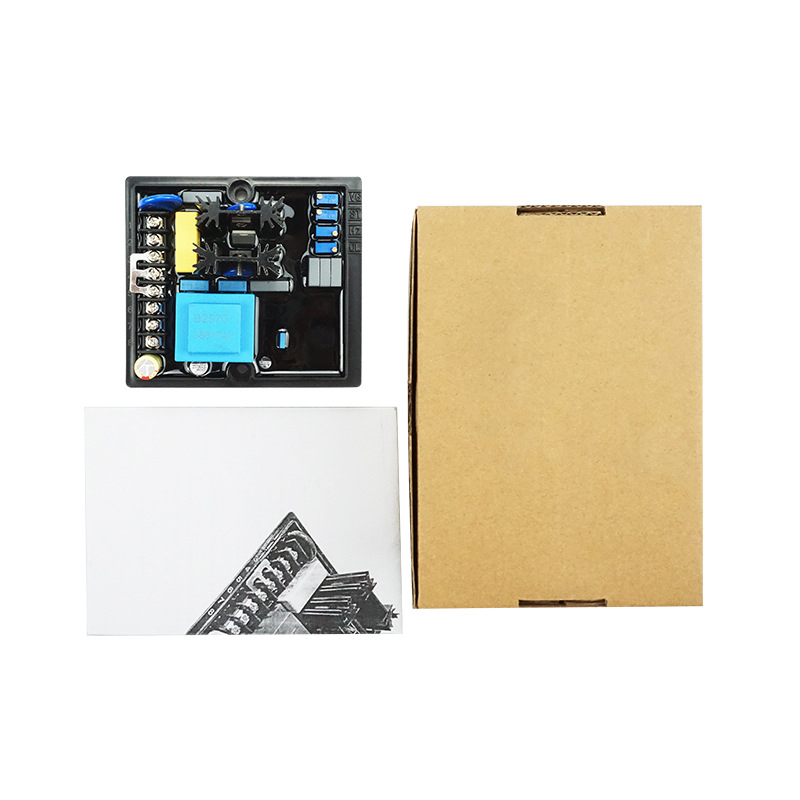

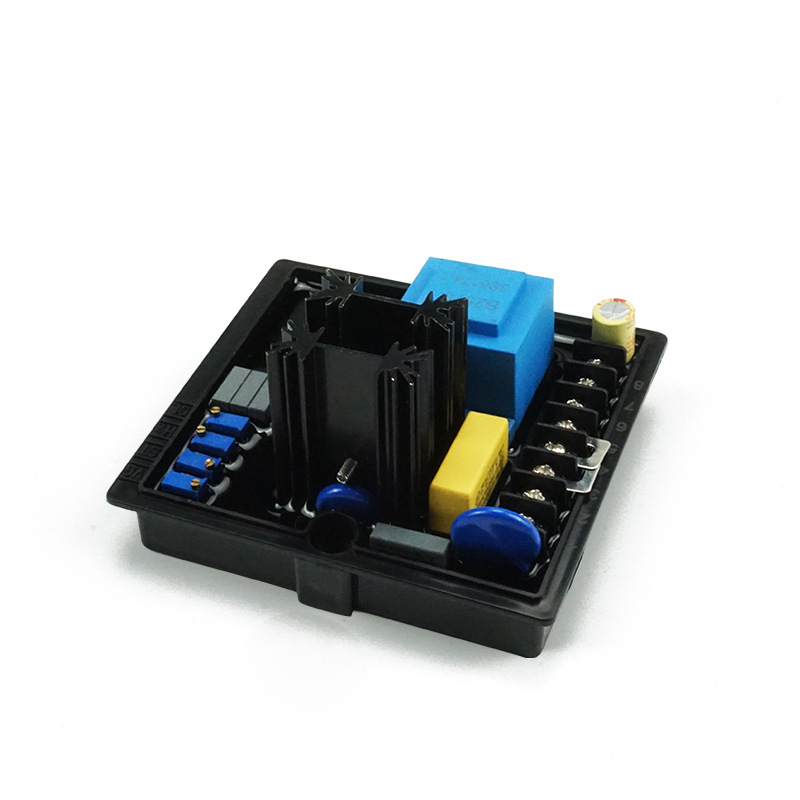

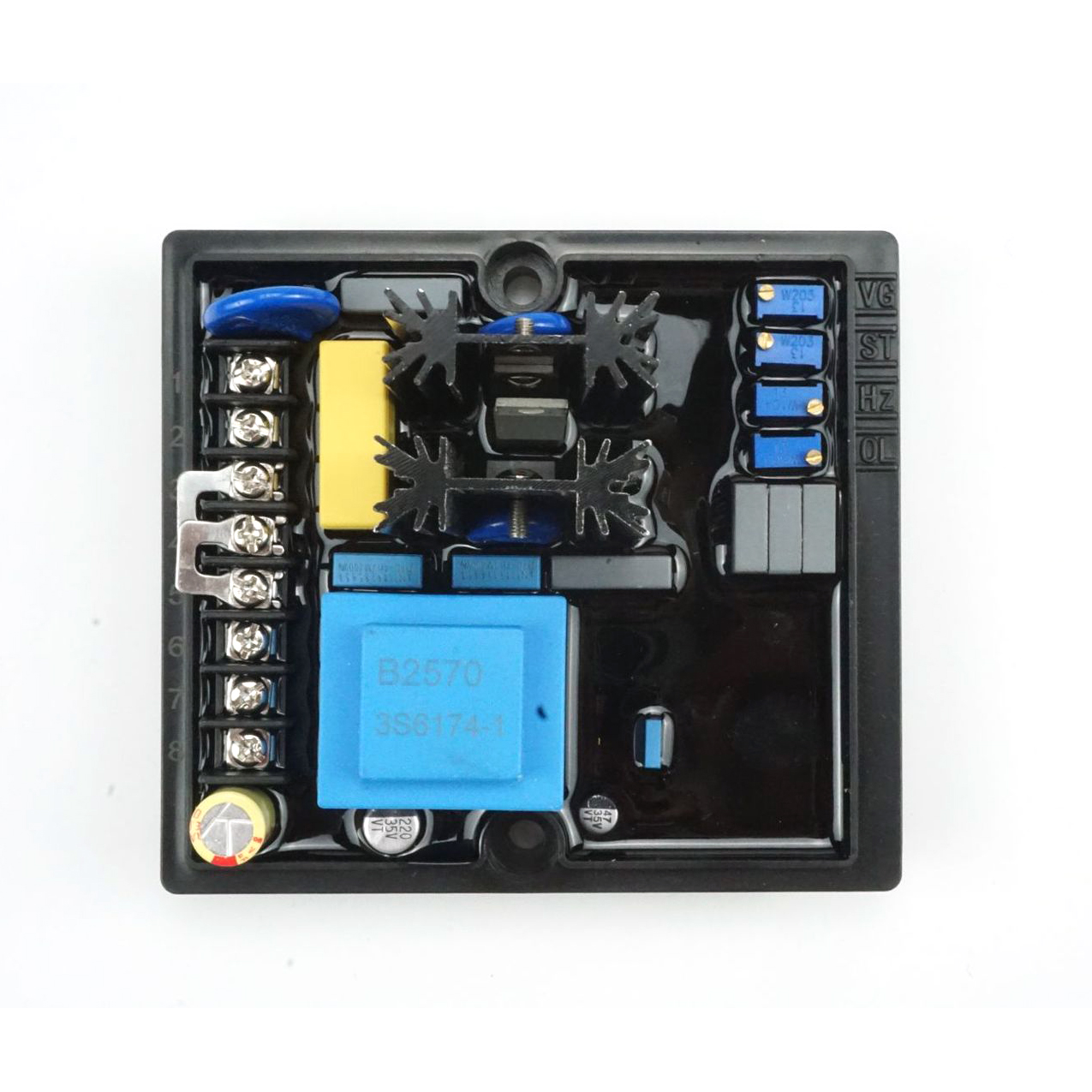

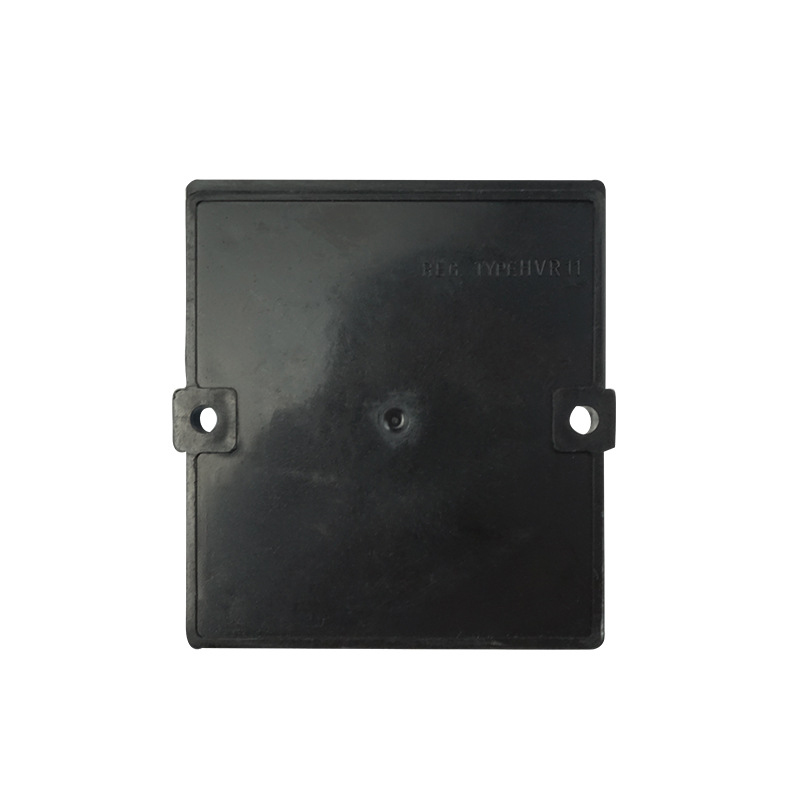

HVR-11 generator AVR automatic voltage regulator for Linz 8KVA generator
The electronic regulator HVR-11 is made with state-of-the-art electronic components which permit to
obtain, with reduced dimensions, all needed functions to control any type of alternator.
Main features of this regulator are:
- Voltage static error within the limit of ±1%.
- Wide stability control regulation to guarantee the most suitable dynamic response to any
situation (type of drive motor, size of alternator).
- Adjustable protection from low frequency operation.
- Adjustable protection from overexciting caused by anomalous loads
- Supply voltage inlet:
a) 110Vac ±15%,
b) 220Vac -25%/+15%
- Maximum field current: 10 Adc
- Permanent field current: 7 Adc
- Single phase reference voltage inlet: 90Vac ÷ 440Vac
- Outlet voltage setting of the alternator with multi-round trimmer
- Stability control setting with multi-round trimmer
- Intervention level setting of low frequency protection with multi-round trimmer
- Intervention level setting of over-exciting protection with multi-round trimmer
- Remote potentiometer inlet
- Possible operation at 50Hz or 60Hz
- Possible operation of alternators in parallel
