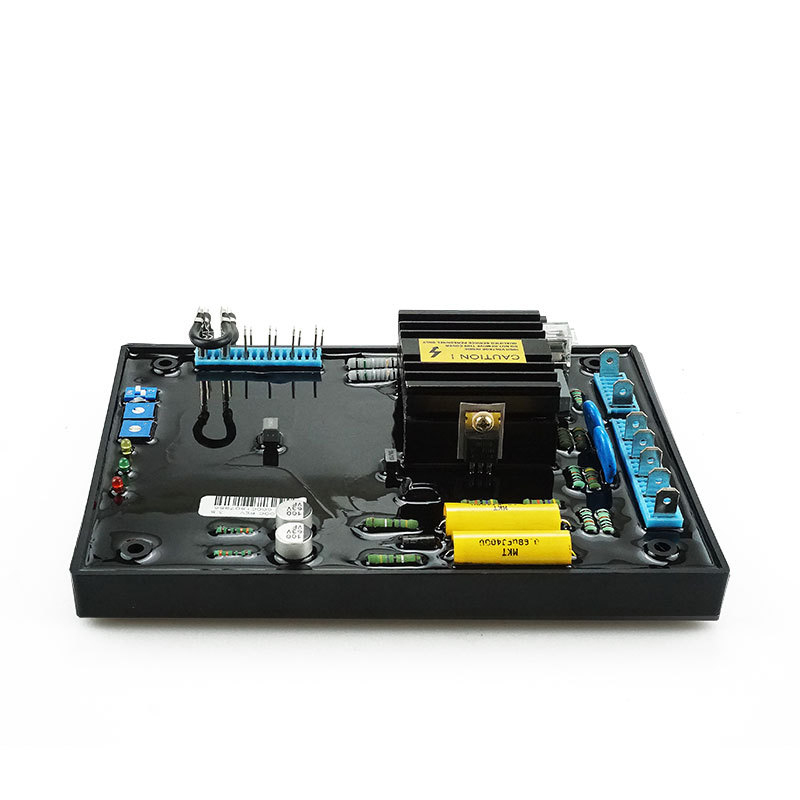

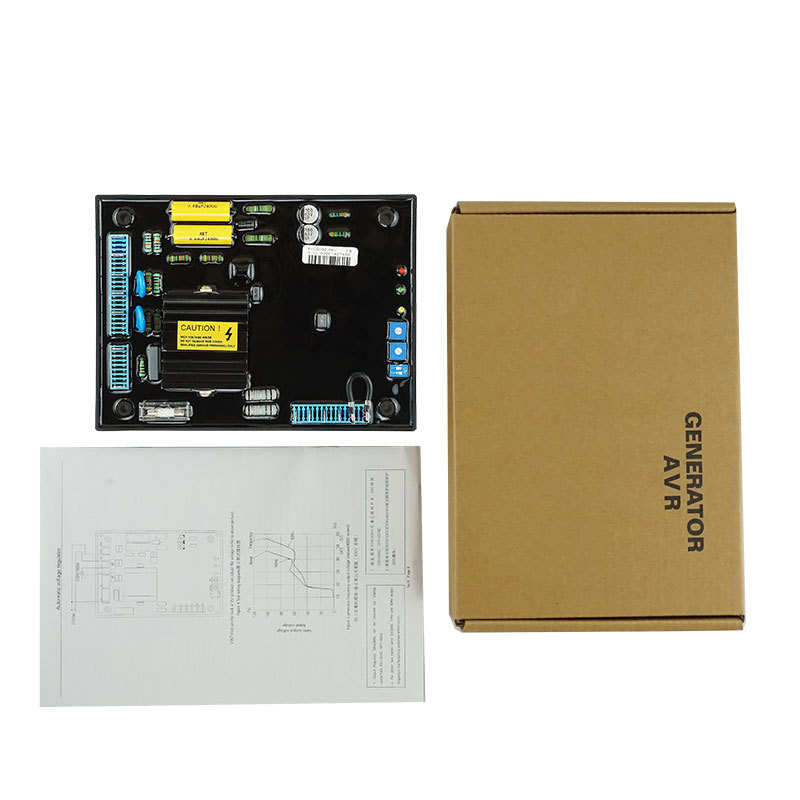

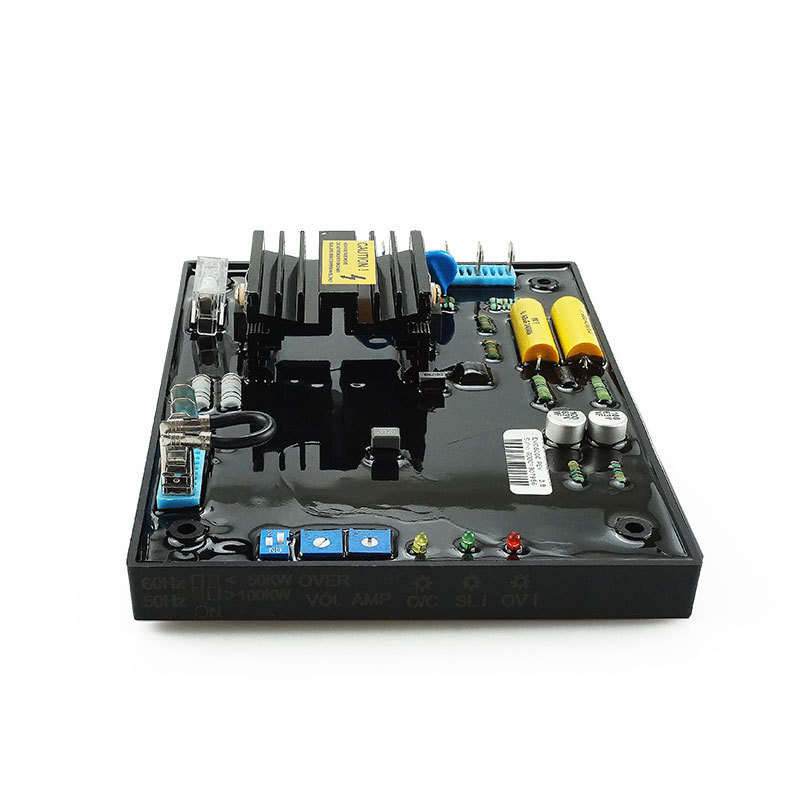

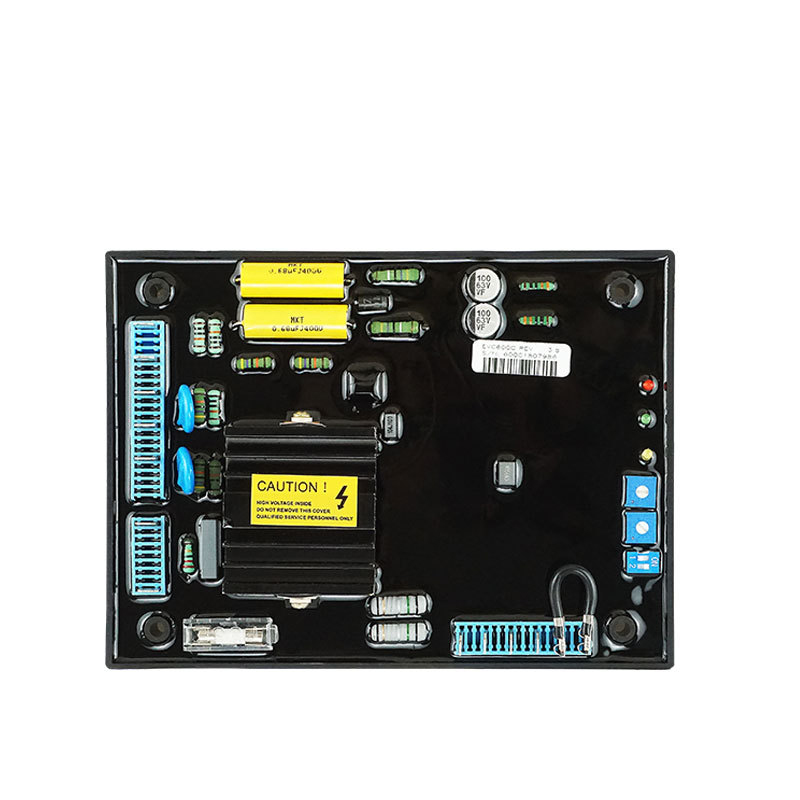

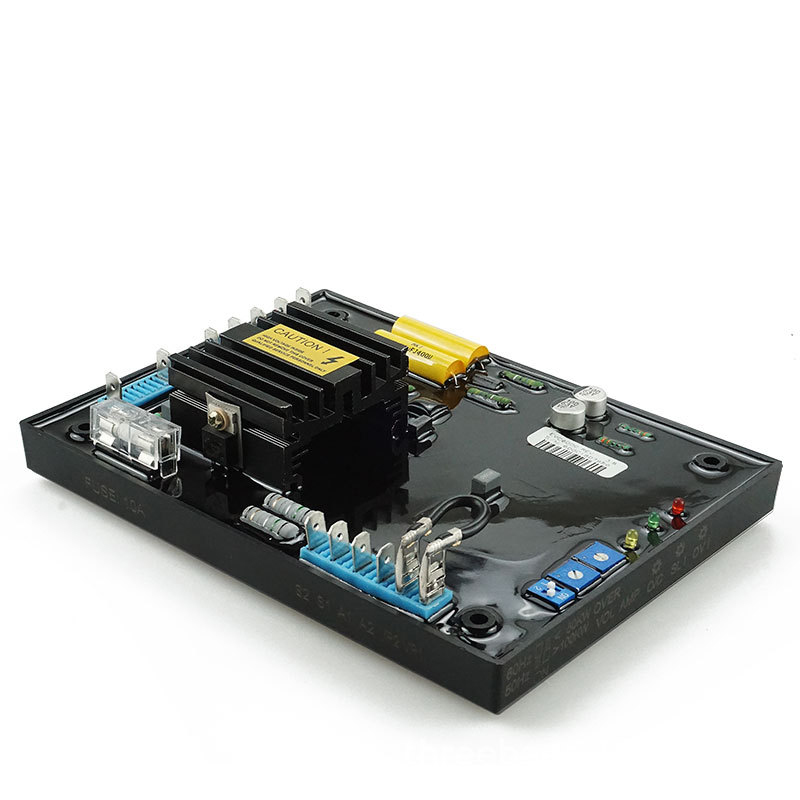

EVC600C AVR diesel generator Excitation Automatic Voltage Regulator Stabilizer genset control Adjuster spare parts

Voltage: Up To 90 VDC 220Vac
Continuous Current: 8A
Maximum Instantaneous Output Current: 10ADC. ≤10S
Minimum Excitation Winding Resistance: 8Ω
Input Voltage (AC)
180-250Vac, 50/60Hz
Power: Up To 1000VA (240Vac)
Detection Voltage (AC)
180~250Vac (220Vac System), Single Phase, 50/60Hz;
350~480Vac(400Vac System), Single Phase, 50/60Hz;
Power Consumption: 5VA
Voltage Adjustment Range
180-300Vac 220Vac System; 350~480Vac 400Vac
Voltage Regulation Accuracy ≤ ± 1%
Voltage Drift < 0.05% / °C
Response Time: 1.5S
The Residual Excitation Voltage Of The Generator Is Automatically Built, 5Vac, 25Hz
Power Consumption: Up To 40W
CT: Rated Current Ratio 5A
Ordinary Current Transformer Drop0~6%, 0.8 Power Factor
Operating Temperature
-30°C~+800°C
Vibration
12Gs, 5-26Hz;
0.036 Inch Amplitude, 27~52Hz;
5.0Gs, 53~1000Hz
Shock
20Gs On Three Orthogonal Planes
Installation Location
Mounting The Junction Box Of The Generator With Bolts
