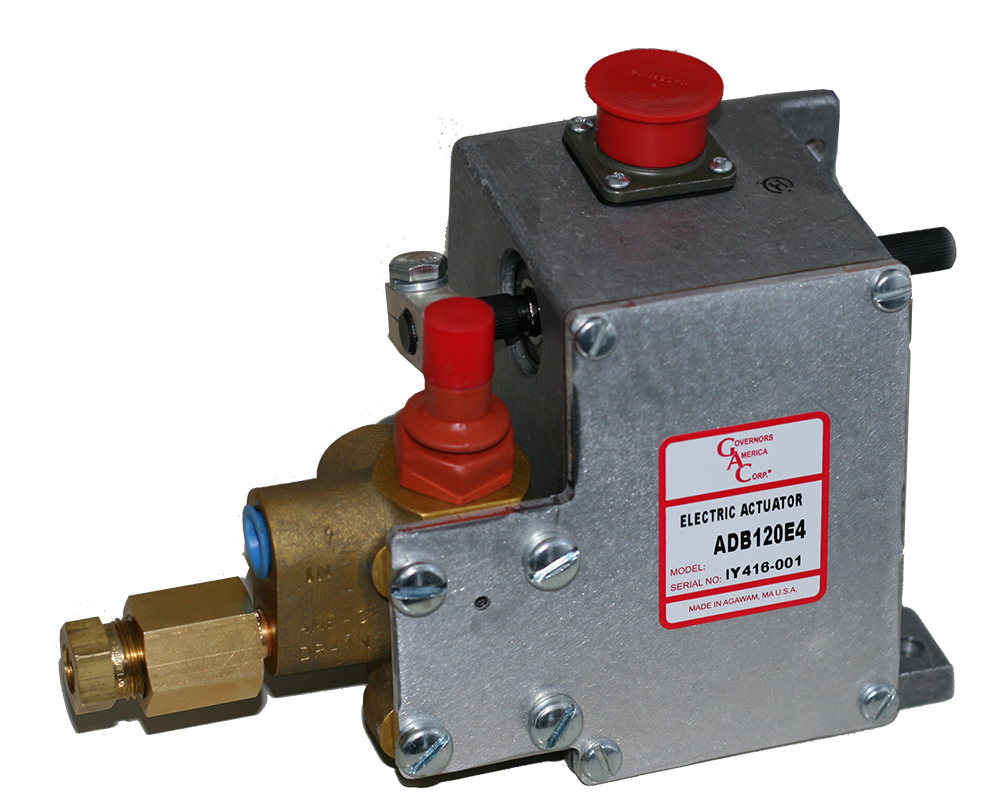

Diesel engine parts generator actuator ADB120E4
Product ID : ADB120E4
Product Tags :
Diesel EngineFuel Pump ActuatorGenerator Governor ActuatorSpeed Governor Actuatoengine actuator controlfuel Actuator
Product Attributes :
120 Series Universal Actuator
Multi-VDC • Military-Style Connector without Mating Connector • Includes Fuel Metering Valve KT6723 and Check Valve VA410063
Product Description
120E4 Series Integrated Metering Valve/Actuator, Cummins PT Fuel System
Fuel Metering system for Cummins engines with PT fuel systems
The ADB120E4 is a rotary-output, linear-torque, proportional, electric fuel metering servo for use on Cummins engines with PT fuel systems. Energized by signals from a speed control unit, this actuator is capable of delivering fuel at rates up to 1700 Ibs/hr. Since the design is totally sealed, outstanding reliability is achieved. A single compression spring is used to improve reliability. No maintenance is required.
